FOUNTAIN NOZZLES
A range of fountain components designed and manufactured by us to exacting standards, competitively priced.

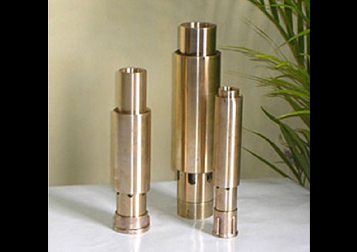

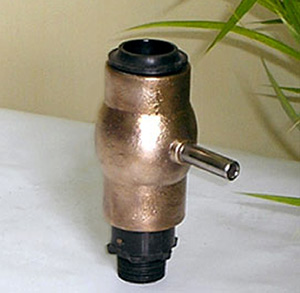

Very visible uniform column of white aerated water. Lights extremely well. Economical water consumption in relation to visual effect. Air intake sleeve isadjustable : sleeve up ; spray heavier and lower, sleeve down ; spray lighter and higher. Sleeve lockable. Constant water level required.
Bronze and brass or fused epoxy coated aluminium adjustment flanges-can be supplied on order

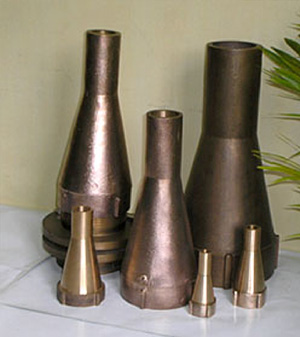

Precision bore nozzles. Usually used in groups or assemblies
Brass/bronze or fused epoxy coated aluminium

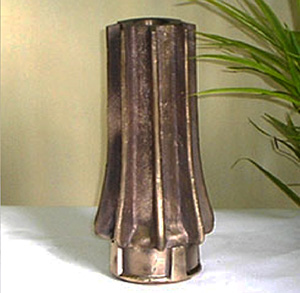

One of our most popular fountains. Streamlined, elegant effects. The nozzle is mounted on an extension tube with straightening vanes. The extension tube is in turn bolted to the inlet pipe and bend which has an adjustable mounting allowing the jet to be brought absolutely vertical. An inlet flange can also be provided drilled to order.
Nozzle: Bronze Extension tube, straightner vane: Cast aluminium with fused white epoxy coating Inlet pipe and assembly: Steel galvanized stainless steel fittings.
Moving jets catch the eye – a classic fountain Teflon® and elastomer seals for long bearing life. Arms and nozzle are adjustable.
Bearing – Brass Body – Bronze or fused epoxy coated aluminium Arms – Stainless steel Nozzles – Brass with chromium plating

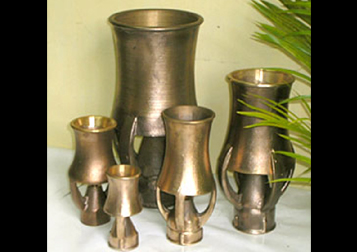

High foaming jets. Water level independent. Beautiful when illuminated. Do not immerse below water level.
Bronze or fused epoxy coated aluminium
Water level dependent. Beautiful when illuminated. Do not immerse below water level.
Bronze, engineering plastic or fused epoxy coated aluminium and engineering plastic.
One of the most popular fountains, both elegant and intriguing. Recommended for windless areas. Requires filtered water. Risers (stands) available for various heights. Nozzles fully adjustable Inlet of 180 sphere ‐ 6”Flanged
Balls: Bronze or fused epoxy coated aluminium Tubes: Stainless steel or fused epoxy coated aluminium Nozzles: Brass with chromium plating Adjust nozzle to obtain required effect

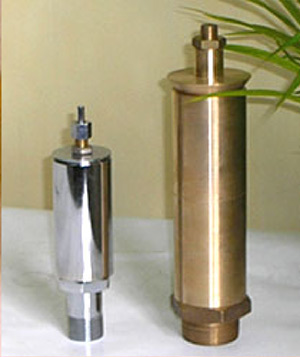

Morning Glory produces a globular sheet of water, similar to the flower from which this effect derives its name. The water pattern may be modulated from either a full translucent sheet or a broken half sheet. The full sheet produces minimal noise or splashing. The Morning Glory is suitable for indoor applications where a relaxing ambience is desired.
MG-C 20 Brass with chromium plating, others bronze and brass or fused epoxy coated aluminium

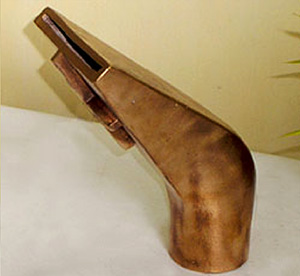

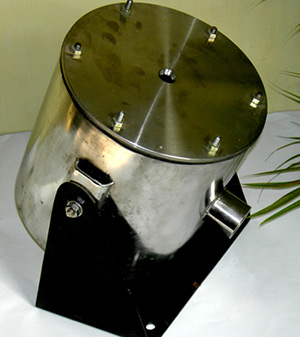

A clear fan-shaped display. Angled at 45 degrees. Best in wind-free conditions. No constant water level required.
Bronze or fused epoxy coated aluminium
‘Inlet 1” Female’ Quality of water- potable Installation ‐ vibration free foundation. No wind Lamp ‐ 12 V,35 W narrow angle sealed lamp Transformer for lamp ‐ 220V/12V Best performance ‐ nozzle to be at 45° Throw max ‐ 3.66m. Power ‐ 15amps,220V,single phase

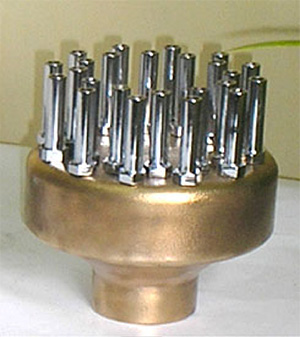

Model Ref. WC 100 Inlet 4” flanged, OD 9” No. of Nozzles 36 A (inches) 11.5 B (inches) 13.0 C (inches) 4.5 Inlet flange can be provided drilled to order.
Nozzles: Brass with chromium plating or fused epoxy coated aluminium Manifold: Cast bronze or fused epoxy coated cast aluminium

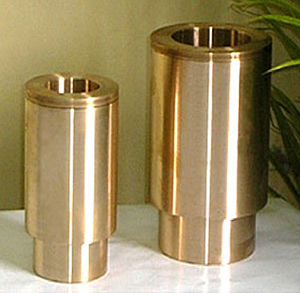

A uniform column of white aerated water. Water level independent.
Bronze or fused epoxy coated aluminium

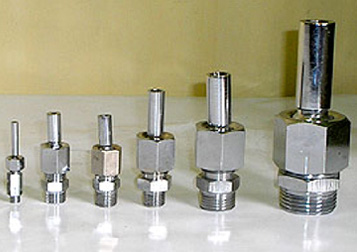

Precision bore nozzles. Usually used in groups or assemblies. Complete with sealed ball joint allowing an inclination of approximately 15 degrees off the centre line.
Brass with chromium plating and rubber seal.
Lavish cascades of foaming white water. Very prominent display and sound effect. For optimum effect dimension L must be maintained. Water level dependent – requires constant non varying water level. Non turbulent water supply required. Optional: CJ 12N, CJ 25N – ball joint, others – adjustment flanges.
Bronze, fused epoxy coated aluminium, stainless steel fasteners.

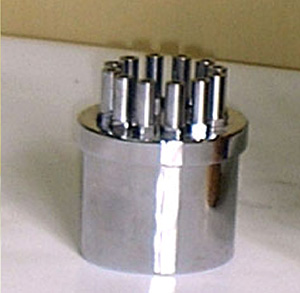

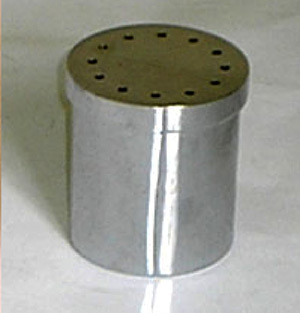

Use in multiples for the best effect Individual nozzles mounted on the body.
Nozzles, body- Brass with chromium plating.

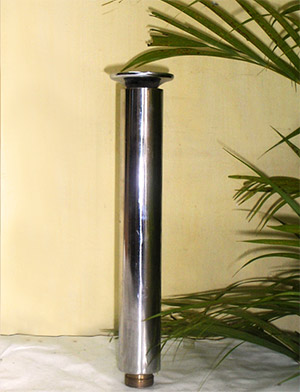

A clear sheet of water shaped like a bell or mushroom. Splash free. Use in windless areas. Filtered water required.
Brass,bronze, stainless steel

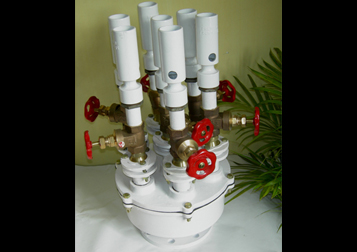

Spectacular effects, outstanding. Resists wind Nozzles on the ball joints. The centre jet is larger in diameter. An inlet flange can be provided drilled to order.
Nozzles- Bronze and brass or fused epoxy coated aluminium Valves – Brass Ball Joints – Bronze and brass Manifold – Cast bronze or fused epoxy coated aluminium
One of the most popular fountains. Elegant and intriguing.
Brass, chromium plated

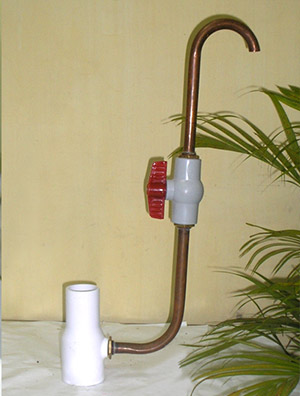

Nozzle ‐ Bronze or fused epoxy coated aluminium Snorkel pipe ‐ For 1” Jet SS, for1½” & 2″ copper Air ratio valve – Brass

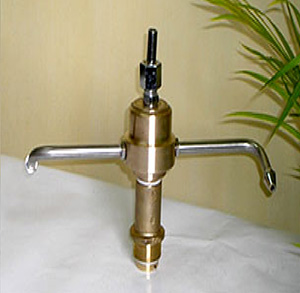

Arms adjustable for speed of rotation etc. Teflon® and elastomer seals for long bearing life
Bearing ‐ Brass Body ‐ Bronze or fused epoxy coated aluminium Arms ‐ Stainless steel Nozzles and Head ‐ Brass with chromium plating
Also known as Apron Spray Head. Model Ref. FS20 Inlet ‐ Female thread ¾” No. of Nozzles 18 A (inches) 2.00 B (inches) 2.63
